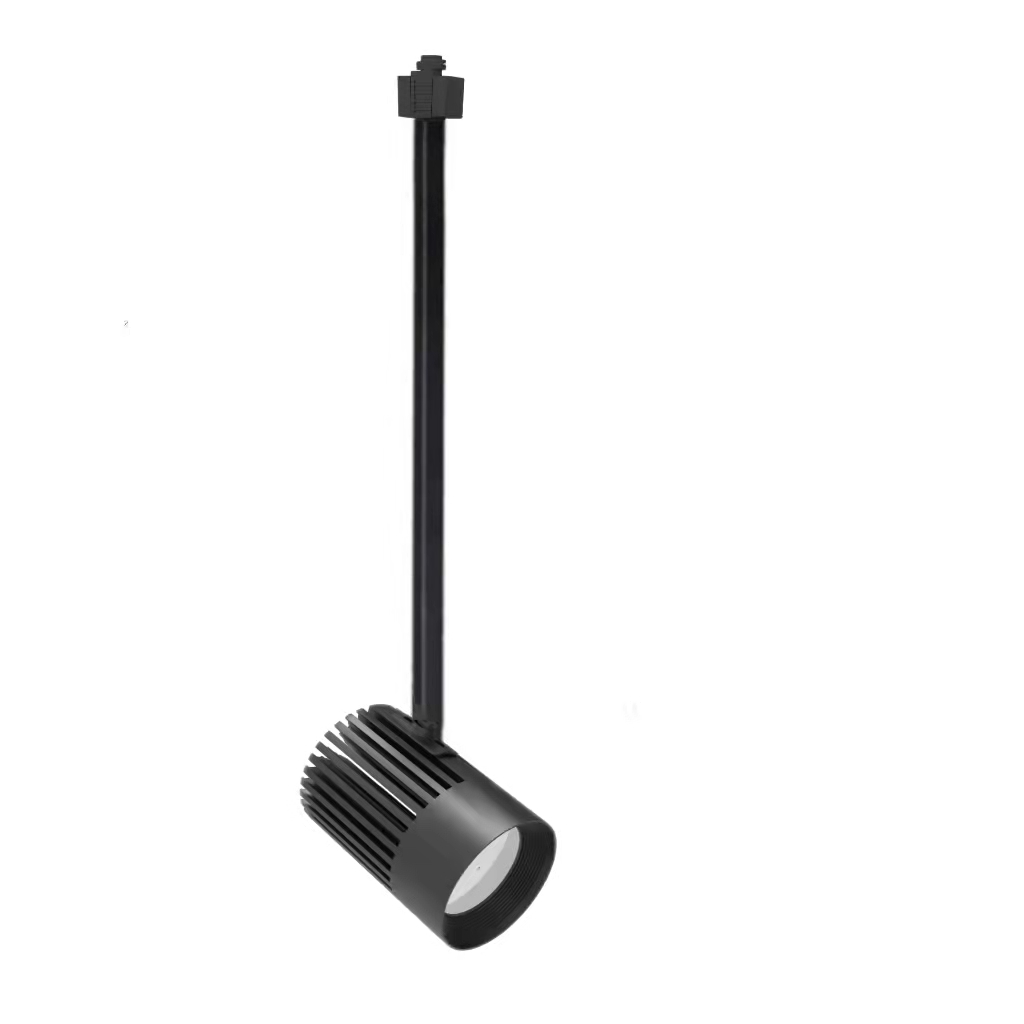

45W COB LED J/H/L Track System Track Pendant Light Kitchen Lighting

LED Light Engine

• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• Multiple connectors can share a lamp body
• 50,000 hrs average rated life

Electrical System

• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

• Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
• Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Compatibility

Track luminaire is designed for use with the following track systems:

• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

HIGH VOLT COB CHIP(WITHOUT DRIVER)

This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.

The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.

Mounting

Track Pendant mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
