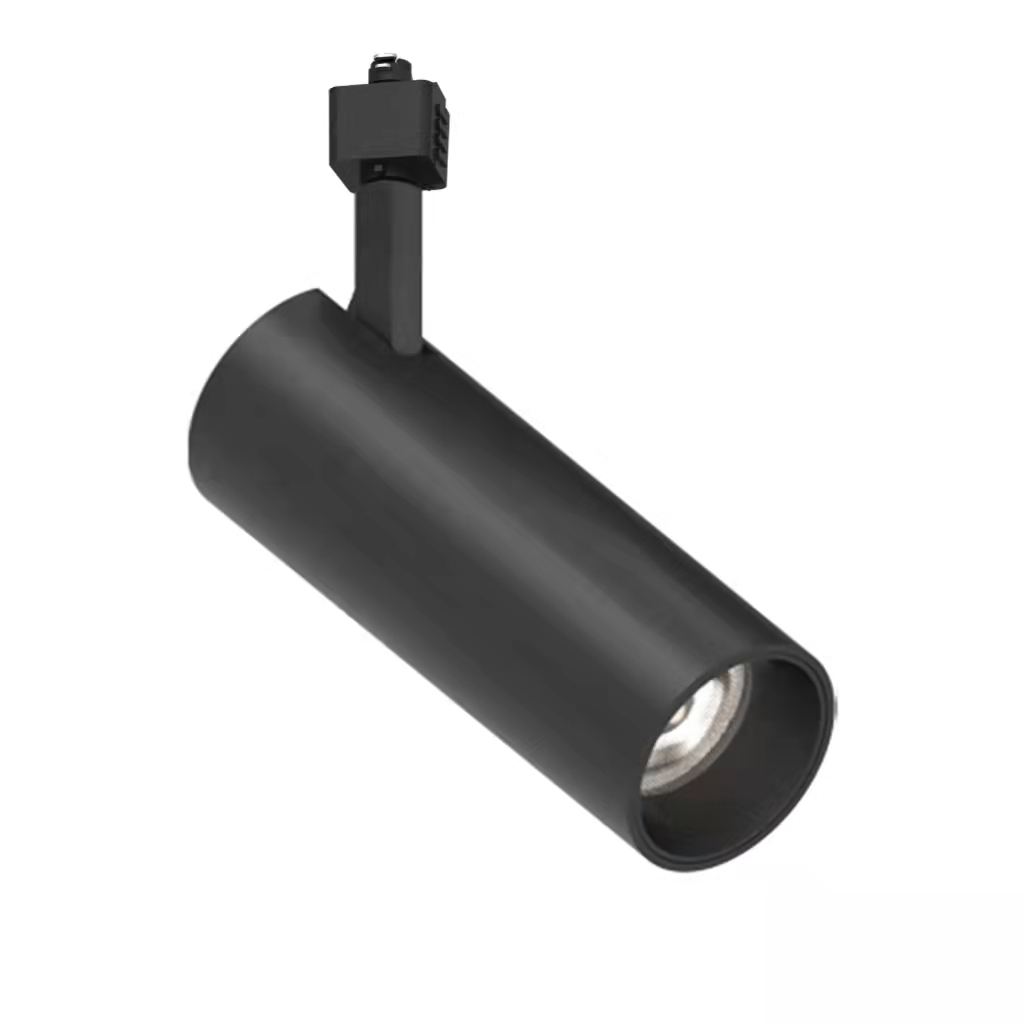

3 Rail System Combined H/J/L Type 21W COB 3CCT LED Track Light Kitchen Lighting
/
/
/
/
3 Rail System Combined H/J/L Type 21W COB 3CCT LED Track Light Kitchen Lighting

LED Light Engine

  • Color Temperature 2700K-6000K
  • CRI 80+
  • 3 Step MacAdam (3 SDMC)
  • Passive aluminum heat sink
  • 50,000 hrs average rated life

Electrical System

  • 120V/277V 50/60Hz input
  • Over voltage, over current and short circuit protection: Auto recovery
  • MTBF > 100,000 hours

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

  • Track Dimming
  • (ELV) reverse phase control dimmers. 120V only.
  • Dimmable 100 – 10%
  • Canopy Dimming
  • ELV Dimming 120V
  • 0-10V Dimming 120V or 277V

Compatibility

Track luminaire is designed for use with the following track systems:

  • Single Circuit/Single Neutral 120V
  • Two Circuit/Single Neutral 120V (No Dimming)
  • Two Circuit / Two Neutral 120V
  • Two Circuit / Two Neutral 277V

DRIVER ON BOX(DOB) Solution

This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.

The main advantages DOB LED luminaires are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.

Material Die cast aluminum
Input Voltage 120/277v 50/60Hz input
Wattage 10W/15W/21W
CCT 2700,3000K,3500K,4000K
PF >0.98
CRI 80+/90+
Mounting Track Mount

Mounting

Track mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
