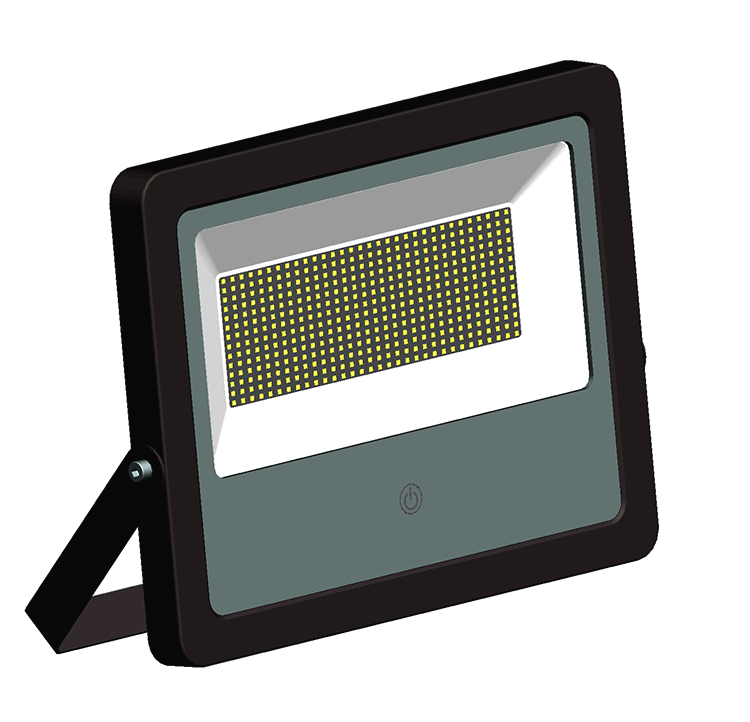

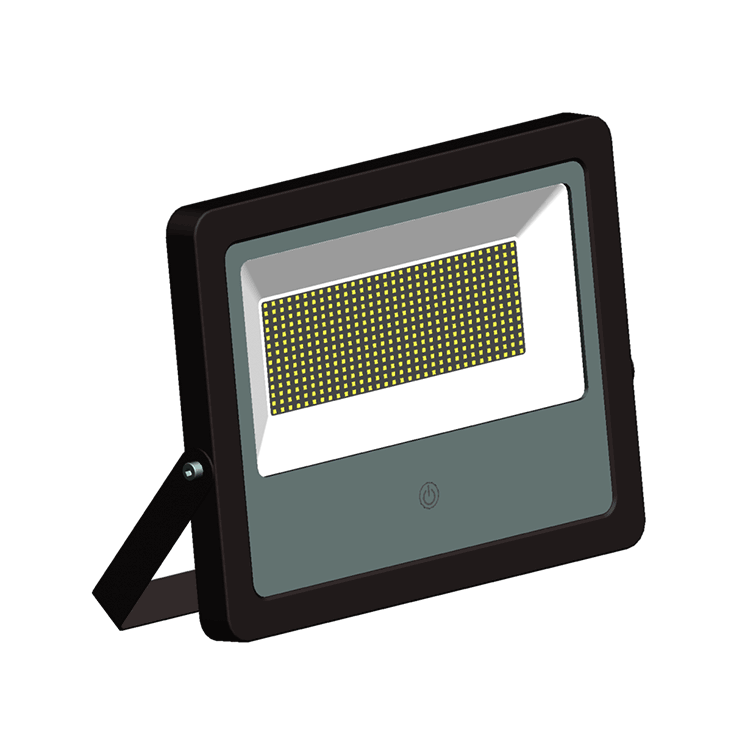

Liteharbor IP66 3CCT Ultra-thin LED Flood Light
ITEM No.： DG5215
Wattage : 150W/200W
Input Voltage : AC 120V
IP Rating : IP66
Beam Angle : 120 Degree
Features
– Ultra-thin streamlined external light design and LED structure features organically combined, the appearance is simple.
– 4mm tempered clear glass, light transmittance up to 95%, reduce the light loss.
– High density die casting aluminum lamp body with reasonable heat dissipation design to ensure the service life of lamps.
– Adopt brand LED light source.
– Outdoor professional static outdoor plastic powder sprayed on surface, anti-UV, anti-corrosion and weather resistance is strong.
– Unique touch switch dimming function: 3CCT (3000K/4500K/6000K).
– Unique outdoor wall switch color temperature control function 3CCT (3000K/4500K/6000K)
– Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
– Electric shock protection: Class I
– IP rating: IP66
Applications
Suitable for factories, gymnasiums, wharfs, billboards, buildings, lawn, gardening design and other lighting and decorative lighting places.
Parameter
| Item No. | DG5215 | DG5215A |
| Input Voltage | AC 120V | AC 120V |
| Frequency Range | 50-60Hz | 50-60Hz |
| Light Source | 224 PCS | 448 PCS |
| Power Factor | >0.95 | >0.95 |
| Total Harmonic Distortion | <15% | <15% |
| System Power | 150W | 200W |
| Light Distribution Optional | 120 degree | 120 degree |
| Luminous Efficiency | >100lm/W | >100lm/W |
| Luminous Flux | 15000lm | 20000lm |
| Applicable Ambient Temperature | – 30 — 45°C | |
| Working Temperature | RH10％-90％ | |
| CCT | Warm White 2700K Pure White 4500K Cool White 6000K |
|
| CRI | Ra>75-90 optional | |
| IP Rating | IP66 | |
| Life Span | ＞20000h/＞30000h/＞50000h are optional | |
| Electric-shock Safeguard | CIASS I | |
| Dimensions | 421*321*55mm | |
Mounting
In-ground Mounted
Suspension Mounted
Tree Hanging Mounted
