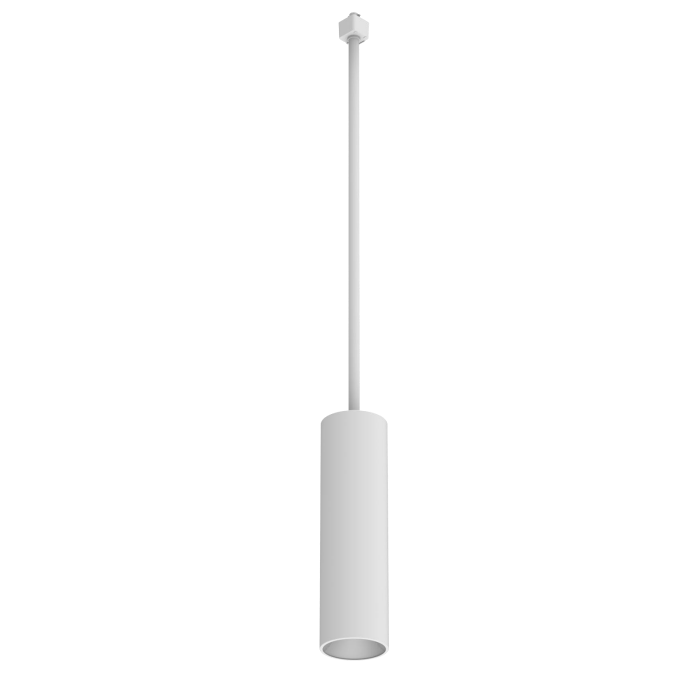

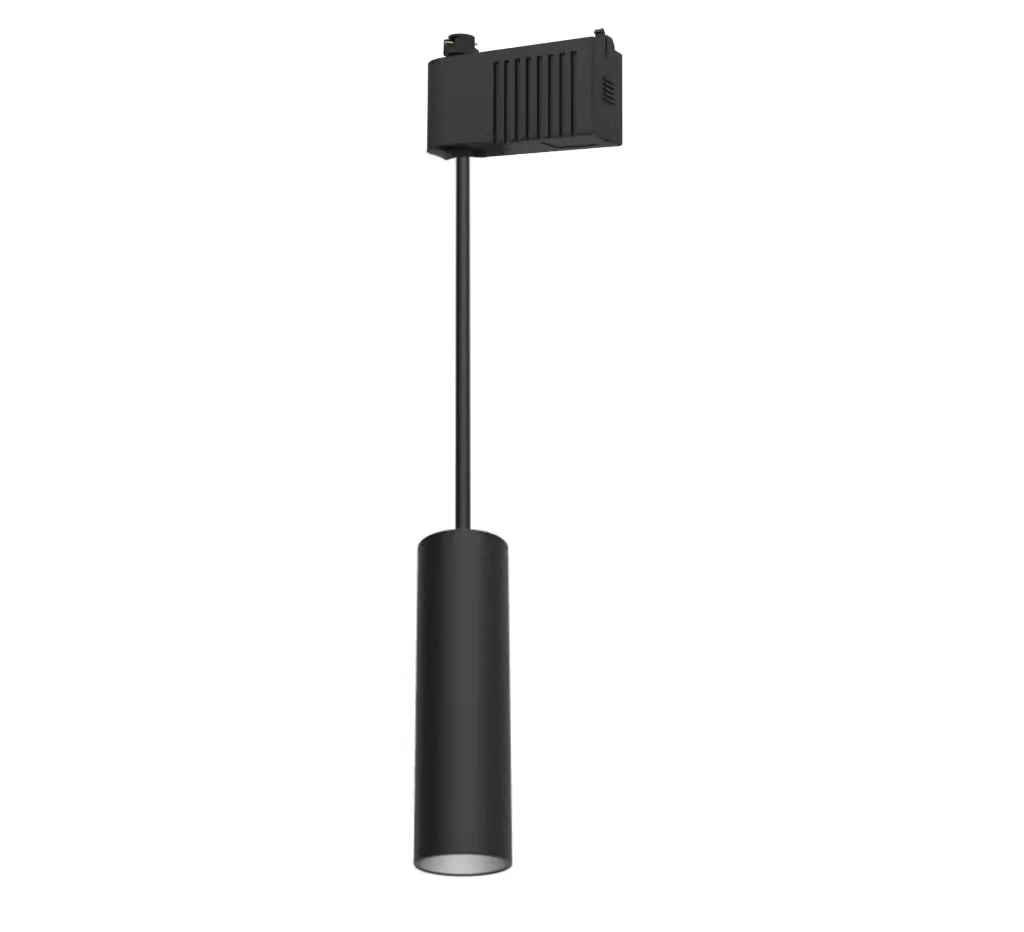

Low Volt J/H/L Track System Villa lighting 3CCT Cylinders LED Track Pendants
ITEM No.： AL35-VA-M1
Series : LED Pendant Downlight
Wattage : 10W/16W/20W
Light Source : LED
CCT : 2700-6000K
Shape : Cylinders
FEATURES
Centrally powered driver 120V input at the light source becomes the output 24V power.
lamp beads. Low-voltage centralized power supply improves safety and reduces single lamp spare parts.
Sleek, high performance pendant complements pendant downlighting family.
Unique flush, surface, cable, pendant mount design allows for precise alignment and adjustment.
All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.
120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.
Easy installation and ultra energy efficient.
Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.
3 color temperature selectable, convenient inventory and cost savings.
SPECIFICATIONS
Radiator: Using cold forging radiator, fast heat dissipation, structure of the heat dissipation module, integrated balanced conduction convection,radiation heat, to ensure long product life.
Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.
| Material | Die cast aluminum |
| Input Voltage | 24V |
| Wattage | 10W/16W/20W |
| CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Track Pendant Mount |
Mounting
Pendant mounted.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
