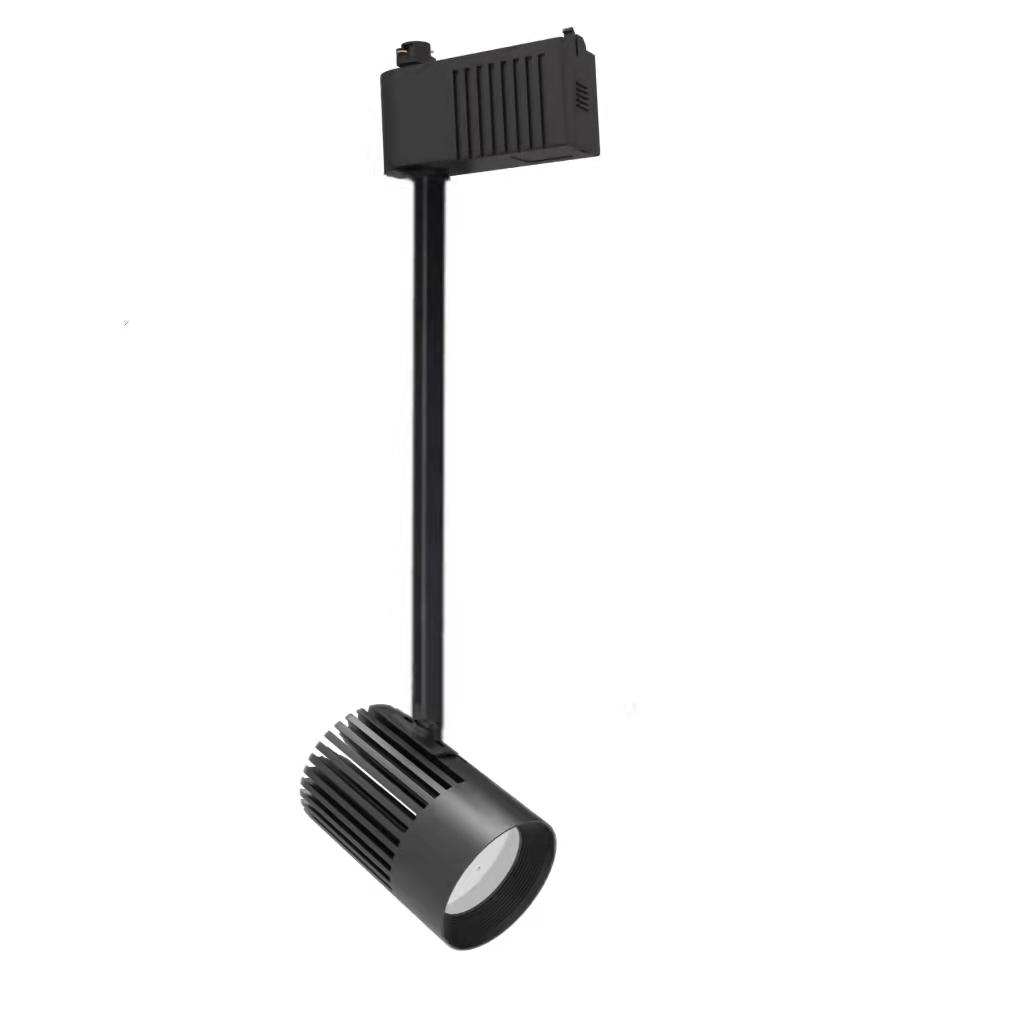

30W Low Volt Track Pendants COB 3CCT LED Track System Track Light Kitchen Lighting
ITEM No.：AL3023-M1
Series : LED Track Light
Light Source : COB LED
Input volt : 24V
Wattage : 45W Max
Lumen : 100 lm/W
Feature
Centrally powered driver 120V input at the light source becomes the output 24V power lamp beads. Low-voltage centralized power supply
improves safety and reduces single lamp spare parts.
The structure of the track lights is compact and the appearance is simple and generous.
24W max per lamp(track bar can be customized as required).
The lighting has a wide range of adjustments, the vertical tunability is up to 90 degrees. It provides good light output, high efficiency and energy saving, and can be suitable for various lighting places.
Long life, low electromagnetic interference, low energy consumption, high performance and provides short circuit and over current protection.
Dimming: Non-Dimming/DMX512 Dimming without flicker.
3 color temperature selectable, convenient inventory and cost savings.
SPECIFICATIONS
Radiator: Using cold forging radiator, fast heat dissipation, he patented structure of the heat dissipation module, integrated balanced conduction convection, radiation heat, to ensure long product life.
Lens: Professional optical grade PMMA lens, a variety of beam angles (narrow 10°, medium 20°, wide 30°) are available, and other beam angles are available.
Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
- 24V Not Dimming
- DMX512 Dimming
| Material | Die cast aluminum |
| Input Voltage | 24V |
| Wattage | 10W/15W/20W/25W/30W/35W/40W/45W |
| CCT | 2700,3000K,3500K,4000K,5000K/6000K |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Track Pendants Mount |
Mounting
Track mount
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
